???Brand : Lenotel
1: 5MP IMX335(SONY335) image sensor，AHD/TVI/500W(5.0MP) ,CVI/ 400W(4.0MP),CVBS output ，effective resolution is up to 2592*1944；
2: OSD function support 6 different languages, can support white balance/mirror/digital noise reduction/UTC etc.
3: USE FH8538M DSP, with OSD function(color/white-black, PAL/NTSC switch)；
4: AGC type, day-night effect is distinct,various day-night mode can be switched by OSD freely;
5:Power(600)video(2kv) dual-lighting design, OSP antioxidant PCB, size 32*38 dual-board.
6: product parameter：
image sensor : 1/2.8 IMX335 (SONY335) resolution : 2592 (H)*1944 (V)
effective pixels : 5MP
signal system :PAL/NTSC（OSD exchange）
day-night mode : external control(default)/auto/color/white-black（OSD switch）
S/N Ratio : ≥50DB
minimum illumination : 0.1LUX
(BLC) : AUTO
(AES) AUTO/ 1/50（1/60）-1/50,000sec
(AWB) : AUTO
IR control input voltage : OFF(DC 0V) / ON:DC 3V-8V
OSD language(6) :
English/Simple Chinese/Traditional Chinese/Polish/Italian/Portuguese
video output : AHD/TVI/CVI/CVBS
video record occupation : 1min≈35.2MB（3.6mm lens）
working voltage :DC12V/80mA ±6mA( Voltage: 9V-18V)
working environment : -20℃ --- 50℃
1、1080P IMX323(SONY323) mega HD image sensor, 4 in 1 AHD/TVI/CVI/CVBS output, effective resolution is up to 1920*1080；
2、OSD support 9 different languages, Saturation/White balance, 3D-NR/image
enhancement/privacy masking/motion detection etc.
3、Adopt FH8536H(V30H) DSP, with OSD function (color/white&black, PAL/NTSC switch)；
4、AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu； Support no CDS-in
5、Can support UTC function, 4-in-1 output, OSD adjust freely.
6、Power（600W）video（2KV）dual lightning protection design，OSP antioxidant PCB，small size
32*38 double board design.
7、Product parameter：
Image device: 1/2.9 IMX323 (SONY323)
Effective resolution : 1920 (H) × 1080 (V)
Effective pixels :2MP (1080P)
Signal system: PAL/NTSC（switched by OSD）
Day-night mode : External control(default)/Auto/Color/White&black（switched by OSD）
S/N ratio : ≥50dB
Minimum illumination : 0.1LUX
BLC : AUTO
(AES)Auto electronic shutter : AUTO/ 1/50（1/60）-1/50,000sec
(AWB)Auto white balance : AUTO
IR control voltage input : OFF(DC 0V) / ON:DC 3V-8V
OSD language(9) : English/Simplified Chinese/Traditional Chinese/Spanish/Russian/French/Portuguese/Italian/Japanese
Video output : 4 in 1 AHD/TVI/CVI/CVBS
Video record occupation : 1min≈38MB（4mm lens）or 6MM
Working voltage : DC12V/67mA ±6mA(wide voltage 9V-18V)
Working environment : -20℃ --- 50℃
?

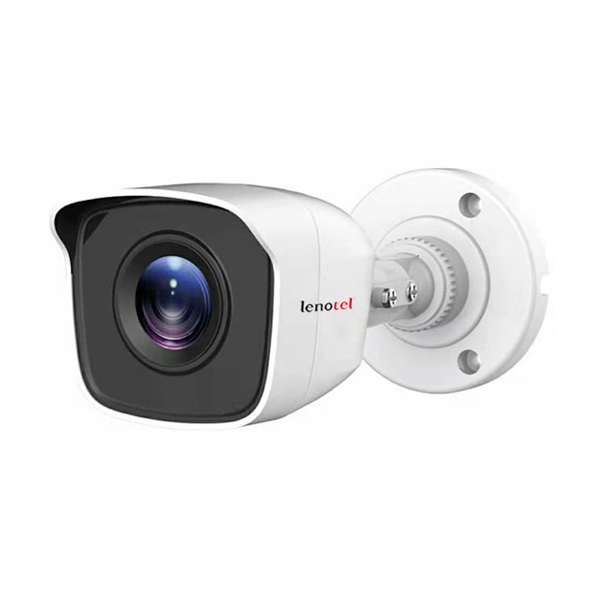

1: SONY Sensor HD Camera
2:4K/8MP ;5.0MP(2592*1944);4.0MP(2592*1520);3.0MP(2048*1536);2.0MP(1920*1080);1.3MP(1280*960);1.0MP(1280*720) Effective Megapixels available.
3: Hybrid 4 in 1 ( AHD& TVI & CVI & CVBS ) Bullet Camera
4: Support IR-CUT filter switching, to achieve day and night monitoring;
5: using high-performance sensor, image clarity, and delicate;
6: Coaxial Hybrid 4 in 1 OSD cable: AHD or TVI or CVI or CVBS video output,which is adjustable .
7: need access to the back-end video recorder;
8: the transmission distance over 500 meters;
9: support for ultra-low-light;
10: support for automatic electronic shutter function, adapt to different monitoring
11: meets IP66 waterproof design, high reliability;
12: Scenarios：Apply to roads, warehouses, underground parking and other place;which required definition picture quality.
?
