1: 4K/8MP(3840*2160) ;5.0MP(2592*1944);4.0MP(2592*1520);;2.0MP(1920*1080); Effective Megapixel available.
2: SONY Sensor IP POE Camera
3: Support IR-CUT filter switching, to achieve day and night monitoring;
4: using high-performance sensor, image clarity and delicate;
5: need access to the back-end video recorder;
6: support for ultra-low-light;
7: support for automatic electronic shutter function, adapt to different monitoring
8: meets IP66 waterproof design, high reliability;
9: Scenarios：Apply to roads, warehouses, underground parking and other place;which required definition picture quality.

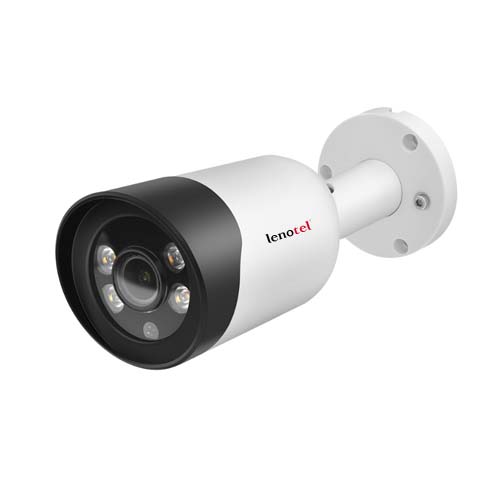

8.0MP/4K FULL Color IP POE SSC328Q + SONY415
Image Sensor | SigmaStar SSC328Q |
Image Sensor | 1/2.8"，8.0MP Megapixel SONY415 |
Lowest Illumination | Color 0.01 Lux |
S/N Ratio | 72dB |
Video processing | PAL/NTSC available, support Auto White Balance, 3D noise reduction, Support wide dynamic,Support anti-face overexposure,defogging function, Compression:H.264 / H.265/ H.265+ available,Achieve ultra-low storage, Stream / Fps adjustable |
Image Resolution | Mainstream:3840*2160@20fps/3072*2048/2592*1944/2560*1440/2304*1296/2048*1536/1080P/960P/720P/D1@30fps， Substream:：720*480D1/VGA/640*360/CIF@30fps/Support CBR/VBR |
Audio processing | Audio linear input and output,G711U / G711A/ACC coding ,Support two-way intercom ,Support MP3 play |
Network Interface | RJ45 Interface,10/100M,Adaptive Ethernet interface,2KV Thunder and lightning Protection |
Protocol | Support HIKVISION / Dahua / HTTP/ RTSP /RTMP/ DHCP/ NTP/ ONVIF/P2P Protocol GB28181 , RTMP and other NVR docking Protocol |
Storage | localization storage (optional), support 8G / 16G / 32G / 64G / 128G |
IO interface | supports electric zoom and automatic focus interface, you need Using zoom lens and zoom control panels and zoom procedures |
Light board interface | The external control mode of the lightboard ,Need to use the corresponding light board. |
IRCUT Interface | Integrated IRCUT switching circuit / automatic/ external control, manual control / Timing control Ircut day and night mode |
Business functions | IE 6.0 or above (Device embedded browser Web Serve browser IE6.0 and above (equipment embedded web server) browser Motion detection and OSD Selfdefination,Support Safari, Chrome, Firefox, Opera,EDGE browser support mobile Webpage Visiting ;JPEG grabs; P2P Cloud Service (DANALE) IP Filter ;Provide SDK (Windows, Android,Linux) development package support HDR up to 128DB , Support soft-sensitive infrared automatic zoom Yuntai Linked Support alarm sound linkage and sound can be customizable |
Camera Lens | 8MP / 5.0MP 2.8MM / 3.6MM / 4MM / 6MM Lens |
Working Voltage | DC 12V / 2A |
POE | POE Module Inbuild or on line |
Lights | 2 pics lights |
Working Environment | -30~85℃ |
Installation | Surface Wall mounting |
Brand : | Lenotel |
Effective Megapixels | 4K/8MP;5.0MP(2592*1944);4.0MP(2592*1520);3.0MP(2048*1536) ;1080P(1920*1080) |
Image Sensor | 1/2.8, Sony 335 , 5.0MP IP / |
Lowest Illumination | Color 0.01 Lux |
Resolution | 2592(H) * 1944(V) |
S/N Ratio | >=50db |
Video processing | PAL/NTSC available, support Auto White Balance, 3D noise reduction,Support wide dynamic,Support anti-face overexposure, defogging function, Compression:H.264 / H.265/ H.265+ available,Achieve ultra-low storage, Stream / Fps adjustable |
Mainstream: | 2592*1944@15Fps,2688*1520/2560*1440@25Fps,2048*1520/2304*1296@25Fps,1080P@30Fps |
Substream: | D1/VGA/ 640*360/480*360/CIF@25fps ,Support CBR/VBR |
Housing | Metal Vandal-proof Housing |
Audio processing | Audio linear input and output,G711U / G711A/ACC coding ,Support two-way intercom , Support alarm sound linkage and the sound can be customized |
Network Interface | RJ45 Interface,10/100M,Adaptive Ethernet interface,2KV Thunder and lightning Protection |
Protocol | Support HIKVISION / Dahua / HTTP/ RTSP /RTMP/ DHCP/ NTP/ ONVIF/P2P/UPNP/GB28181 Protocol and other docking Protocol |
storage | Camera no storage / NVR hard disk storage |
I0 interface | power zoom and auto focus interface Available ,Need to use zoom camera lens and zoom control panel as well as zoom software |
Light board interface | Support passive mode |
IRcut Interface | Integrated IRCUT switching circuit / automatic/ external control, manual control / Timing control Ircut day and night mode |
Business functions | IE 6.0 or above (Device embedded browser Web Serve ) browser browsing Motion detection and OSD customization JPEG snapshot P2P cloud service danale IP filtering Provide SDK(Windows,Android,Linux)Research and development package |
Camera Lens | 8MP / 5.0MP 2.8MM / 3.6MM / 4MM / 6MM Lens |
POE | POE Module Inbuild or on line |
IR Lights | 15 pics IR lights |
Working Environment | -30℃ to + 80℃ |
Installation | Surface Wall mounting |
1: 4K/8MP(3840*2160) ;5.0MP(2592*1944);4.0MP(2592*1520);;2.0MP(1920*1080); Effective Megapixel available.
2: SONY Sensor IP POE Camera
3: Support IR-CUT filter switching, to achieve day and night monitoring;
4: using high-performance sensor, image clarity and delicate;
5: need access to the back-end video recorder;
6: support for ultra-low-light;
7: support for automatic electronic shutter function, adapt to different monitoring
8: meets IP66 waterproof design, high reliability;
9: Scenarios：Apply to roads, warehouses, underground parking and other place;which required definition picture quality
