1: USE FULL Color 8.0MP FH8538E+C18 Sensor / 5.0MP Sony IMX335 5MP Sensor 1080P 5053 Sensor/ 1080P SONY307 Sensor / 1080P F33 / F23 Full Color Sensor Available.
2: C18 8.0 million high-definition image sensor, AHD/TVI/CVI 800W output,CVBS output effective resolution up to 3840*2160;TVI mode supports 8MP20, 5MP20, 4MP25, 4MP30, 2MP25, 2MP30 coaxial audio;
3: Use FH8538E DSP with OSD function (color PAL/NTSC switch);
4:.Excellent performance, clear and bright picture.
5: Support IR-CUT, CDS external control, D/N.
6: Support OSD, Suitable for user-defined Settings.OSD supports 11 languages，white balance / gain modification/image enhancement / left and right mirror / flip mirror functions;
7:Support UTC function,brightness / contrast / sharpness / saturation / noise reduction modification;
8: Adaptive Digital Noise Reduction.
9: power supply (600W) video (2KV) double lightning protection design, OSP anti-oxidation PCB,small volume 38*38 bilateral frame design;

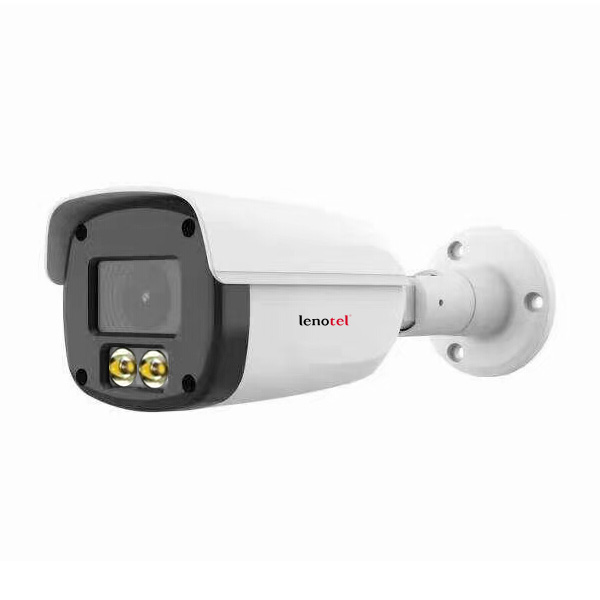

8.0MP FH8538E+C18 Sensor FULL COLOR 4 in 1 Camera
TYPE | FULL COLOR 8.0 MP C18 Sensor 4 in 1 Camera |
Detail Specifications | 8mp 4 IN 1 Camera Module |
Imaging device | 1/2.5 C18 |
Image resolution | 3840 (H)*2160 (V) |
Effective pixels | 8MP/15FPS |
System | PAL/NTSC（OSD change） |
Day and night mode | External control (default)/ auto/color/black and white (OSD toggle) |
Signal to noise ratio | ≥50dB |
Minimum illumination | 0.2LUX |
Backlight compensation(BLC) | Level is adjustable |
Automatic electronic shutter(AES) | AUTO |
Automatic white balance(AWB) | Level is adjustable |
Switch control voltage | OFF(DC 0V) / ON:DC 3V-8V |
OSD Language (11 countries) | English/simple Chinese/traditional Chinese/Russian/Spanish/French/Polish Italian/Portuguese/Japanese/Korean/Greek |
Video output | AHD/TVI/CVI/CVBS |
Video recordings take up space | 1min≈35.2MB（3.6mm lens） |
Working voltage | DC12V/64mA ±6mA(Wide voltage 9V-18V) |
The work environment | -20℃ --- 50℃ |
5.0MP SONY335 Sensor FULL COLOR 4 in 1 Camera
TYPE | FULL COLOR 5MP SONY335 Sensor 4 in 1 Camera |
Detailed Spec. | 5mp 4 IN 1 Camera Module |
Sensor | 1/2.8” IMX335 |
DSP | FH8538M |
System | PAL/NTSC |
Effective Pixel | 2560(H)x1920(V) 5mp 4：32560(H)x1440(V) 4mp 16：9 |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/COLOR/B/W |
Synchronously | Internal |
FPS | 5MP@20fps/12.5fps / 4MP@25fps/30fps/15fps |
Video output | AHD/TVI/CVI can be switch |
Exposure | Shutter/AGC/Brightness |
AWB | ATW/MWB |
DAY-NIGHT | INFRARED/COLOR/B&W |
Video Setting | Contrast/Sharpness/Color Gain/DNR |
Video Output | AHD:5MP20/12.5/4MP25/30/15,CVBS:PAL/NTSC TVI:5MP20/12.5/4MP25/30/15,CVI:4MP25/30 |
Language | Chinese/English |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than90 % |
Power | DC12V(±20%) - 70MA |
1080P 2053 Sensor FULL COLOR 4 in 1 Camera
TYPE | FULL COLOR 1080P 2053 Sensor 4 in 1 Camera |
Detail Specifications | 2MP 4 IN 1 HD Camera Module |
Sensor | 1/2.9＂GC2053 |
ISP | FH8536H |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS |
OSD Menu |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT（Default）/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/ RUS/ITA /POL/POR /KRO |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 65mA |
1: USE FULL Color 8.0MP FH8538E+C18 Sensor / 5.0MP Sony IMX335 5MP Sensor
1080P 5053 Sensor/ 1080P SONY307 Sensor / 1080P F33 / F23 Full Color Sensor Available.
2: C18 8.0 million high-definition image sensor, AHD/TVI/CVI 800W output,CVBS output,
effective resolution up to 3840*2160;TVI mode supports 8MP20, 5MP20, 4MP25, 4MP30,
2MP25, 2MP30 coaxial audio;
3: Use FH8538E DSP with OSD function (color/black and white, PAL/NTSC switch);
4.Excellent performance, clear and bright picture.
5: Support IR-CUT, CDS external control, D/N.
6: Support OSD, Suitable for user-defined Settings.OSD supports 11 languages, can support
white balance / gain modification/image enhancement / left and right mirror / flip mirror functions;
7:Support UTC function,brightness / contrast / sharpness / saturation / noise reduction modification;
8: Adaptive Digital Noise Reduction.
9: power supply (600W) video (2KV) double lightning protection design, OSP anti-oxidation PCB,
small volume 38*38 bilateral frame design;
