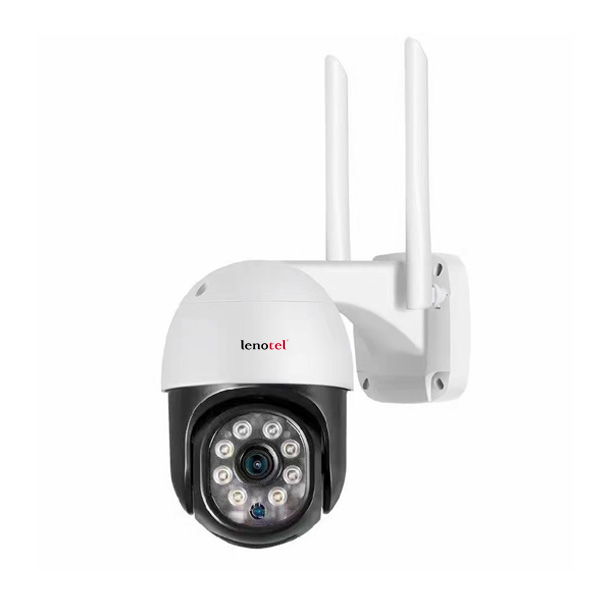

4K ( 8MP)/ 5.0MP / 3.0MP / 1080P Wifi PTZ Camera;
Support for wired and wireless connections
Supporting human detection;
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265AI video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5;
Support ONVIF;access third party;
Support various mobile monitoring(iPhone,Android);
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed;
Megapixel | 4K / 8.0MP |
System structure | Embedded RTOS, dual-core 32-bit DSP ( NT98566 ) ,pure hard compression ,watch dog |
Sensor | 1/2.7" SC8238 CMOS sensor |
Min. illumination | Color：0.001Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.0001 Lux @ (F1.2,AGC ON),0 Lux with IR |
Video compression | H.265AI coding,support dual stream,AVI;0.1M~8Mpbs variable |
Image output | Main stream: 3840*2160@12fps; sub-stream: 640*360@12fps |
Shutter | 1/50(1/60)s to 1/10,000s |
Lens | N/A |
Day and night | Support IR-CUT |
Noise reduction | Support 2D/3D |
Wide dynamic | Support digital |
Auto iris | N/A |
Audio compression | G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization |
Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone; |
Network interface | 1 RJ45 Ethernet interface, 10/100M adaptive |
Extension interface | N/A |
Singal interface | one IR-CUT interface |
PTZ interface | One horizontal motor interface, one vertical electrical interface |
Alarm I/O | N/A |
Wireless interface | 1 *Wireless interface,Support WiFi connections |
Reset interface | Support |
Storage mode | Local TF card storage, up to 128G; cloud storage |
Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
Intelligence analysis | Support human detection and customizing other intelligent functions |
Other function | Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed |
ONVIF | Support |
Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
Power | DC12V |
Dimension | / |
Megapixel | 5.0 MP |
System structure | Embedded RTOS, dual-core 32-bit DSP(XM550AI) ,pure hard compression ,watch dog |
Sensor | 5.0M 1/2.7"SC5335P CMOS sensor,color 0.001Lux@F1.2,black/white 0.0001Lux@F1.2 |
Video compression | H.265X coding,support dual stream,AVI;0.1M~8Mpbs variable |
Image output | Main stream: 2592*1944@12fps; sub-stream: 640*360@12fps |
Shutter | 1/50(1/60)s to 1/10,000s |
Lens | No |
Day and night | Support IR-CUT |
Noise reduction | Support 2D/3D |
Wide dynamic | Support digital |
Auto iris | N/A |
Audio compression | G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization |
Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone; |
Network interface | 1*RJ45 10/100M adaptive Ethernet port |
Extension interface | N/A |
Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
PTZ interface | One horizontal motor interface，one vertical electrical interface |
Alarm I/O | N/A |
Wireless interface | supporting wireless network connection |
Reset interface | Support |
Storage mode | Local TF card storage, up to 128G; cloud storage |
Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
Intelligence analysis | Supporting human detection and customizing other intelligent functions |
Other function | It supports remote monitoring of mobile client, push message after alarm of human figure detection, and supports MJPEG capture |
ONVIF | Support |
Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
Power | DC12V |
Dimension | / |
Other | N/A |
Megapixel | 3.0 MP |
System structure | Embedded RTOS, dual-core 32-bit DSP(XM530AI) ,pure hard compression ,watch dog |
Sensor | 3.0M 1/2.8"SC3335 CMOS sensor,color 0.001Lux@F1.2,black/white 0.0001Lux@F1.2 |
Video compression | H.265X coding,support dual stream,AVI;0.1M~8Mpbs variable |
Image output | Main stream: 2288*1288@12fps; sub-stream: 640*360@12fps |
Shutter | 1/50(1/60)s to 1/10,000s |
Lens | No |
Day and night | Support IR-CUT |
Noise reduction | Support 2D/3D |
Wide dynamic | Support digital |
Auto iris | N/A |
Audio compression | G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization |
Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone; |
Network interface | 1*RJ45 10/100M adaptive Ethernet port |
Extension interface | N/A |
Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
PTZ interface | One horizontal motor interface，one vertical electrical interface |
Alarm I/O | N/A |
Wireless interface | supporting wireless network connection |
Reset interface | Support |
Storage mode | Local TF card storage, up to 128G; cloud storage |
Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
Intelligence analysis | Supporting human detection and customizing other intelligent functions |
Other function | It supports remote monitoring of mobile client, push message after alarm of human figure detection, and supports MJPEG capture |
ONVIF | Support |
Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
Power | DC12V |
Dimension | / |
Other | N/A |
4K ( 8MP)/ 5.0MP / 3.0MP / 1080P Wifi PTZ Camera;
Support for wired and wireless connections
Supporting human detection;
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265AI video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5;
Support ONVIF;access third party;
Support various mobile monitoring(iPhone,Android);
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed;
