system | Main Processor | Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog |
image sensor | 2 2m 1/2.8" SC233A High performance CMOS sensors |
Operation System | Embedded LINUX operating system |
Video Compression | Smart H.265X |
APP | ICSEE (Android and IOS support) |
Video | High Definition | 2*2MP |
Image resolution | Main code stream: 1920*2160@12fps; Substream: 640*720@12fps |
Minimum illumination | 0.01 LUX/pro series |
Lens | 3.6mm(standard) |
Perspective | 92 ° |
| Turn video | Flip up and down/flip side to side |
lighting | Light control mode | Starlight full color/intelligent warning/infrared night vision |
Number of lights | 8 red lights +4 white lights |
PTZ | PTZ control | Rotation Angle level :355°; Vertical :90° |
Turn PTZ | Flip up and down/flip side to side |
Audio | Coding standard | G.711 |
Mitou | support |
Two-way Speech | support |
Record management | Video file size | Hd video ≈9.7G/ day SD video ≈2.4G/ day |
Record Mode | Manual video recording, dynamic detection video recording, timing video recording, alarm video |
Video storage | TF card/cloud |

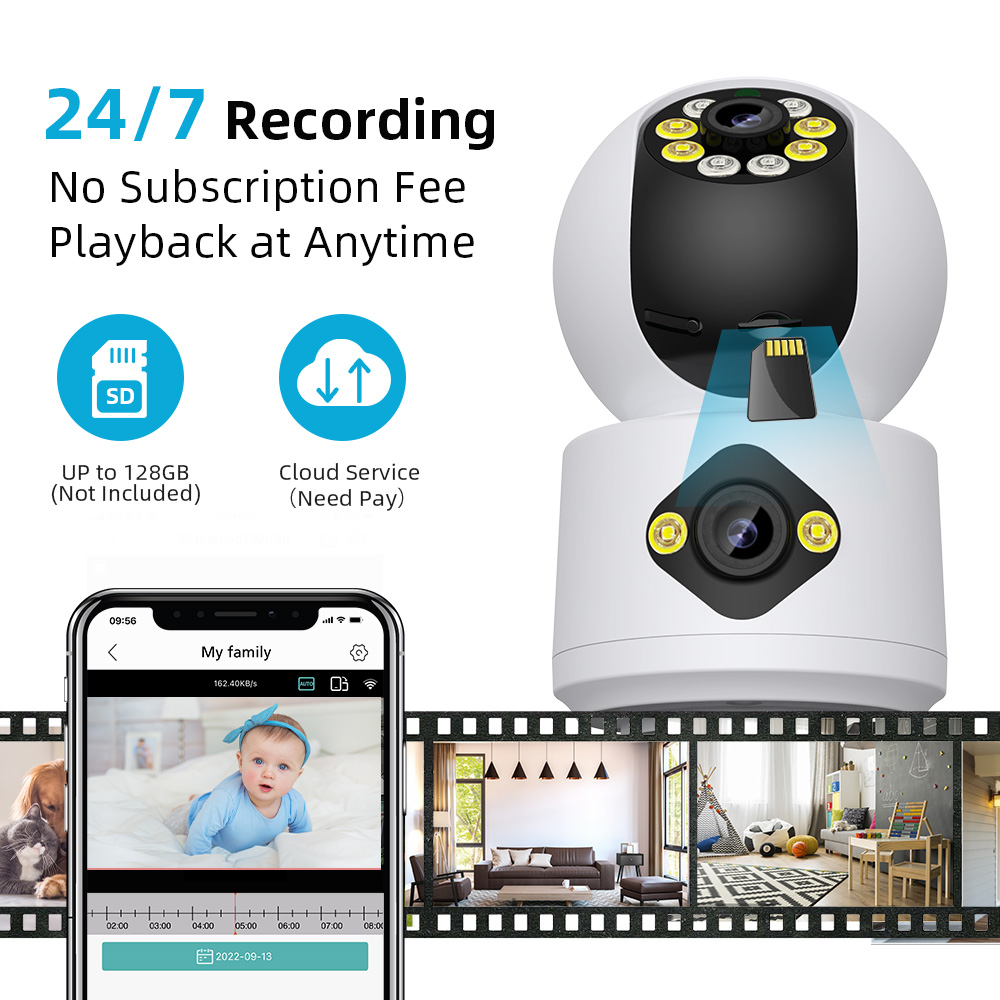

storage | Cloud Storage +TF Local Video recording (128GB Max) |
Remote playback | support |
Image capture | support |
Network | WIFI | 2.4G WIFI 802.11b/g/n |
Pairing | WiFi Smartlink distribution network addition, AP hotspot addition, QR code scanning |
Network Protocol | TCP/IP, ONVIF, RTSP |
extension | Reset key | support |
Human tracking | support |
360degree coordinate positioning | support |
power supply | Power | DC 5V 1.6A |
power interfac | Micro Type-A |
work environment | Suitable place | outdoor,Home,shop,School,factory; |

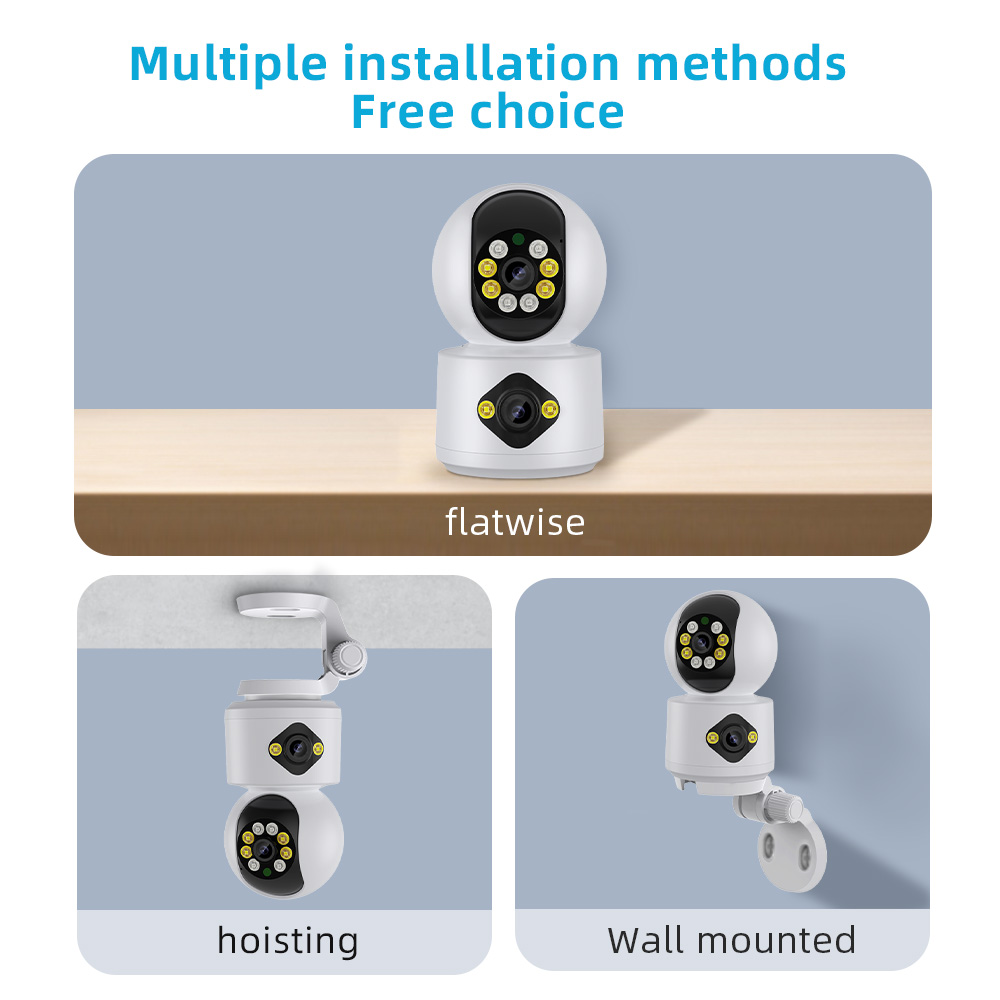

Installation mode | Wall hanging, lifting, flat |
Working Temperature | -20℃-+55℃ |
Working humidity | 10%-90% |

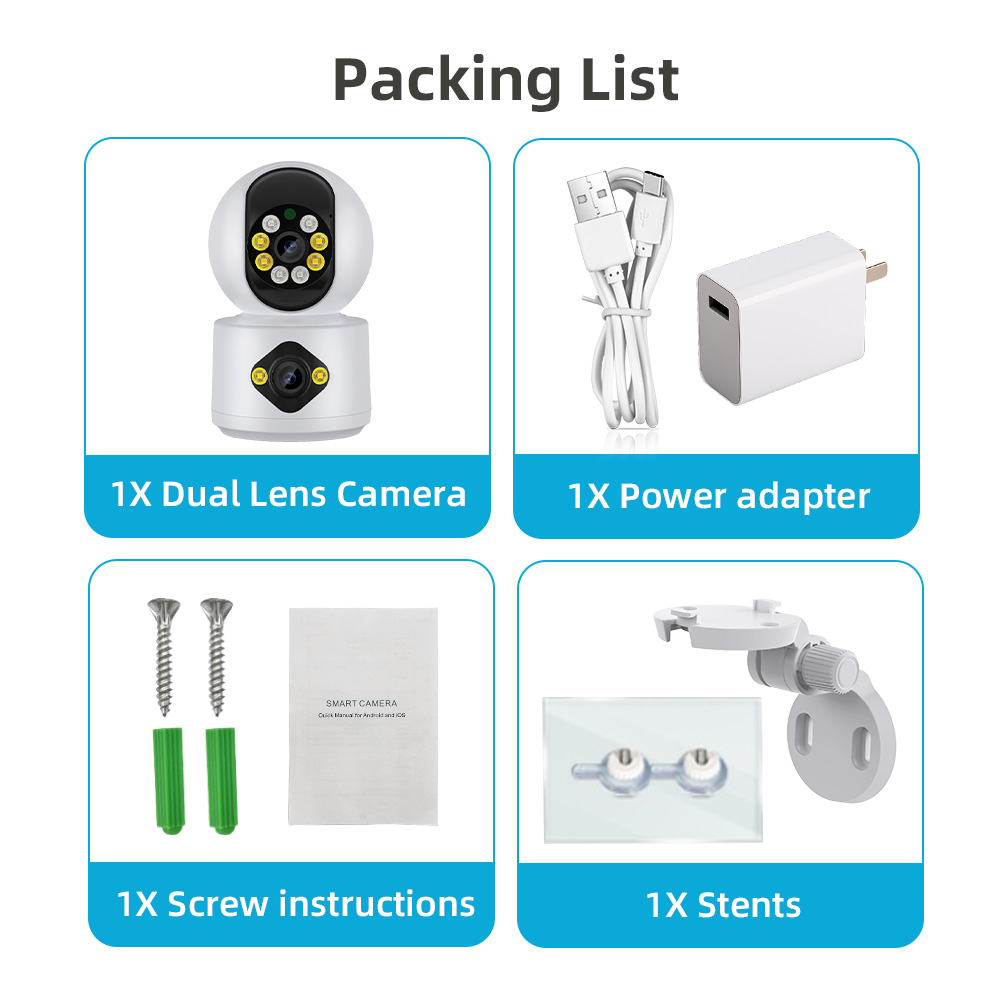

packing | Box | Color box and carton, 40pcs/CTN (5*4*2) |

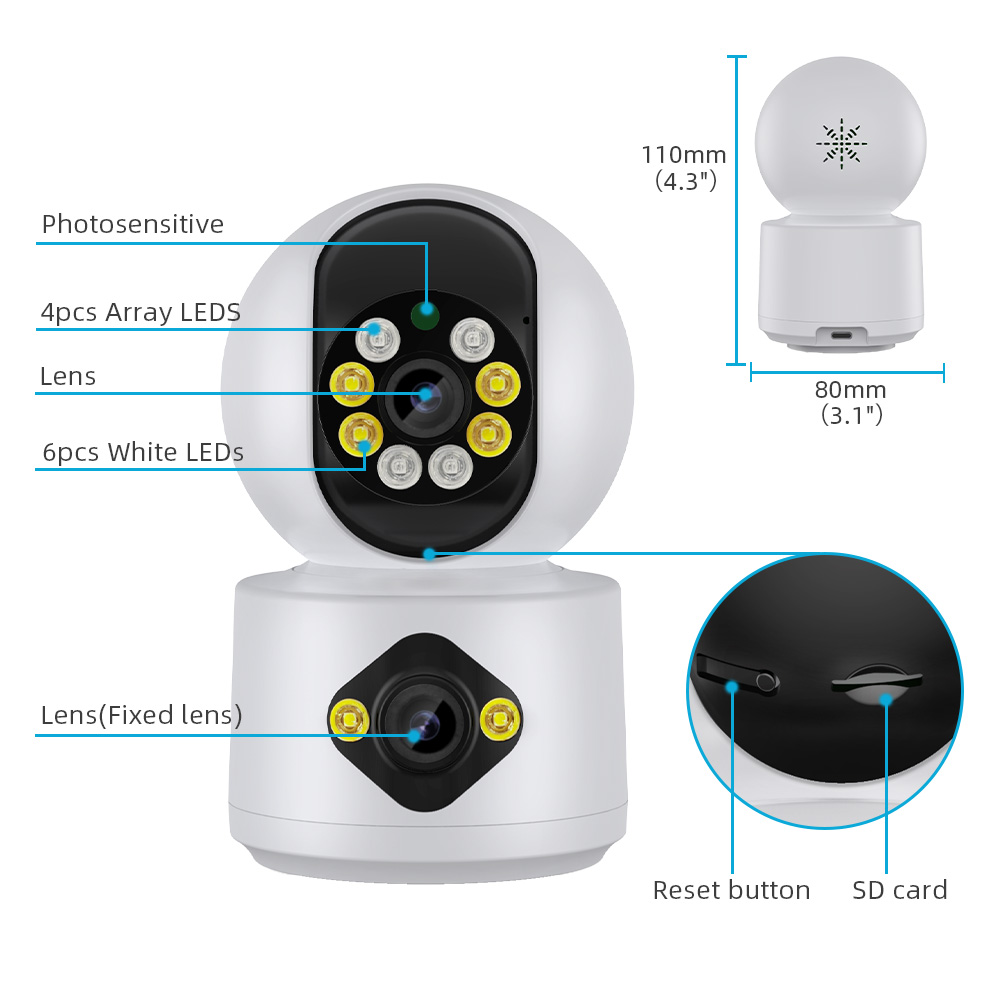

Dimension | Product size:80*80*128mm (L*W*H)
Box size: 95*95*182mm (L*W*H)
Carton size:50*30.5*962.5px (L*W*H)
(only for reference) |
Weight | Net weight: 0.208kg
Gross Weight: 0.365kg
Carton weight: 12kg |
