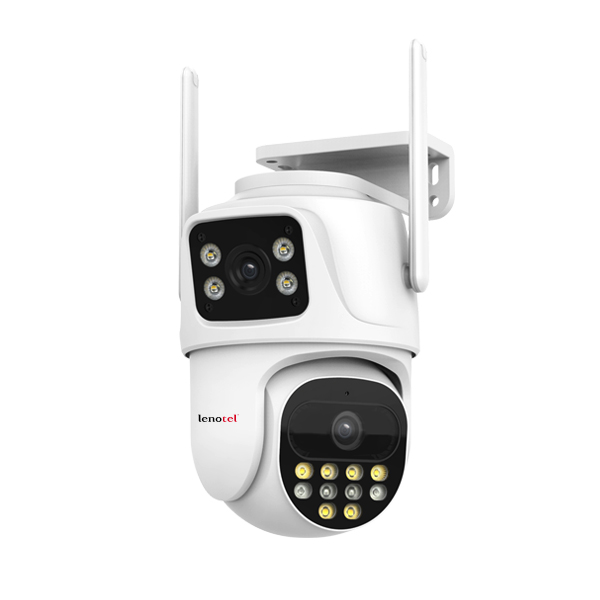

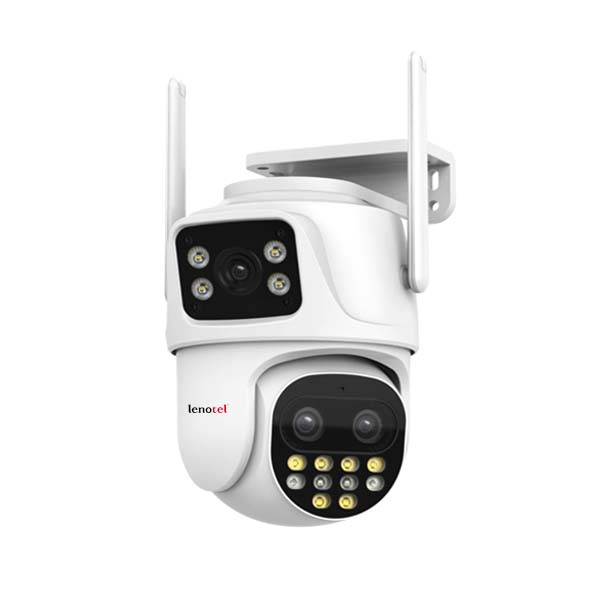

LT-C19-6MP

3MP+3MP+3MP Wifi IP Camera

Mobile Application : ICsee

Humanoid recognition AI alarm WIFI spherical IP camera

  • Specification
  • Features
  • Pictures
  • Accessories
  • Download

1. New generation photosensitive component combination SC300AI wide angle+SC300AI ultra short focus+SC300AI ultra long focus+XM650V200 main control

2. Gun Star Level 3.6MM, ball F1.4 star level 2.8MM-12MM, maximum zoom to 250 meters, one static and one dynamic, coordinated linkage, one top 3 (ball machine+gun machine)

3. Better to use Bluetooth for fast network distribution, you'll know after trying it out?

4. The bracket is not only detachable for wall mounting, but also can be rotated left and right to adjust the monitoring angle. It can be used for 4 purposes per bracket?

5. bionics hybrid lamp angle warm light infrared design 6+6+4+4, night vision takes into account both near and far, and has eliminated light pollution?

6. Multi person human shape detection is the highlight, and tracking at a distance of 15m and doubling the human shape is a good thing? Is there a good record of human figures and frames?

7. Dual stream storage is lower, and dual recording is more accurate?

8. Dual screen landscape? Switching more freely and previewing more comprehensively= Movie mode?

9.Lightning protection, in accordance with national standard GB/T17626.5 and international standard IEC61000-4-5;

10.Support ONVIF protocol and access to third-party backend/platform;

11.Support mobile phone monitoring (iOS, android);

12.Support a variety of cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions


ModelLT-C19-6MP
master controlDual-core 32-bit DSP (XM650V200), pure hard compression, watchdog
sensorThree 3 million 1/2.7 "SC300AI high-performance CMOS sensors
Minimum illuminationColor:0.01Lux @(F1.2,AGC ON); 0 Lux with IR;
Black and white:0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
shutter1/50(1/60) Seconds to 1/10000 Seconds
ocal distanceF1.4*3.6MM+F1.4*(2.8MM-12MM)
noise reductionSupport 2D/3D noise reduction
Video formatH.265AI
resolving powerMain resolution: 2304*2592; Sub-resolution: 800 * 896
Frame rate12 fps
Intelligent analysisSupport human shape detection;Gun ball linkage
Tracking functionSupport human shape tracking
light sourcePatent bionics ball machine 6+6 upper gun machine 4+ 4 mixed lamp angle design
Light modeStarlight full color/infrared night vision/dual light warning
Two-way voicesustain
Cloud storagesustain
Support AgreementSupport NETIP protocol and onvif protocol
network interface10M/100M adaptive Ethernet port
Storage interfaceLocal TF card (up to 256G)
Reset key interfaceSupport one-click recovery
Wireless standardIEEE802.11b, 802.11g, 802.11n
frequency range2.4 GHz ~ 2.4835 GHz
power waste15W
Product size98*127*175mm
Color box size178*164*105mm
temperatureZero 10 ° C -60 ° C, humidity less than 90% [no condensation]
Power SupplyDC 12V ± 10%
weight0.55kg
