1. New generation photosensitive component combination SC300AI wide angle+SC300AI ultra short focus+SC300AI ultra long focus+XM650V200 main control

2. Gun Star Level 3.6MM, ball F1.4 star level 2.8MM-12MM, maximum zoom to 250 meters, one static and one dynamic, coordinated linkage, one top 3 (ball machine+gun machine)

3. Better to use Bluetooth for fast network distribution, you'll know after trying it out?

4. The bracket is not only detachable for wall mounting, but also can be rotated left and right to adjust the monitoring angle. It can be used for 4 purposes per bracket?

5. bionics hybrid lamp angle warm light infrared design 6+6+4+4, night vision takes into account both near and far, and has eliminated light pollution?

6. Multi person human shape detection is the highlight, and tracking at a distance of 15m and doubling the human shape is a good thing? Is there a good record of human figures and frames?

7. Dual stream storage is lower, and dual recording is more accurate?

8. Dual screen landscape? Switching more freely and previewing more comprehensively= Movie mode?

9.Lightning protection, in accordance with national standard GB/T17626.5 and international standard IEC61000-4-5;

10.Support ONVIF protocol and access to third-party backend/platform;

11.Support mobile phone monitoring (iOS, android);

12.Support a variety of cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions

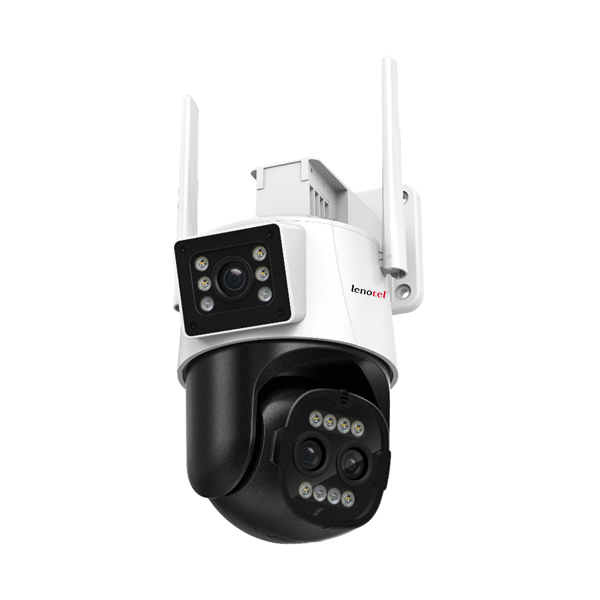

Model : LT-C22-8X-6MP

master control Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog

sensor Three 3 million 1/2.7 "SC300AI high-performance CMOS sensors

Minimum illumination Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR；

Black and white:0.001 Lux @ (F1.2,AGC ON),0 Lux with IR

shutter 1/50(1/60)seconds to 1/10000 seconds

ocal distance F1.4*3.6MM+F1.4*(2.8MM-12MM)

noise reduction Support 2D/3D noise reduction

Video format H.265AI

resolving power Main resolution: 2304*2592; Sub-resolution: 800 * 896

Frame rate 12 fps

Intelligent analysis Support human shape detection；Gun ball linkage

Tracking function Support human shape tracking

light source Patent bionics ball machine 6+6 upper gun machine 4+ 4 mixed lamp angle design

Light mode Starlight full color/infrared night vision/dual light warning

Two-way voice sustain

Cloud storage sustain

Support Agreement Support NETIP protocol and onvif protocol

network interface 10M/100M adaptive Ethernet port

Storage interface Local TF card (up to 256G)

Reset key interface Support one-click recovery

Wireless standard IEEE802.11b, 802.11g, 802.11n

frequency range 2.4 GHz ~ 2.4835 GHz

power waste 15W

Product size 98*127*175mm

Color box size 178*164*105mm

temperature Zero 10 ° C -60 ° C, humidity less than 90% [no condensation]

Power Supply DC 12V ± 10%

weight0.54kg
